The showerhead is one of the core components in a CVD chamber, installed at the top of the chamber directly facing the pedestal. It is frequently disassembled, cleaned, and inspected during routine preventive maintenance (PM). However, its specific structure, functions, and design rationale are worth dedicatedly sorting out.
This article will guide you through the showerhead: its position and structure in the chamber, the two roles it simultaneously undertakes, the reason for the numerous holes, how it ages, and the traces it leaves in process data after aging.
I. Position and Basic Structure of the Showerhead in the Chamber
The core of a PECVD chamber consists of two parallel electrodes, with a plasma reaction space in between. The showerhead serves as the upper electrode, while the pedestal is the lower electrode that carries the wafer.

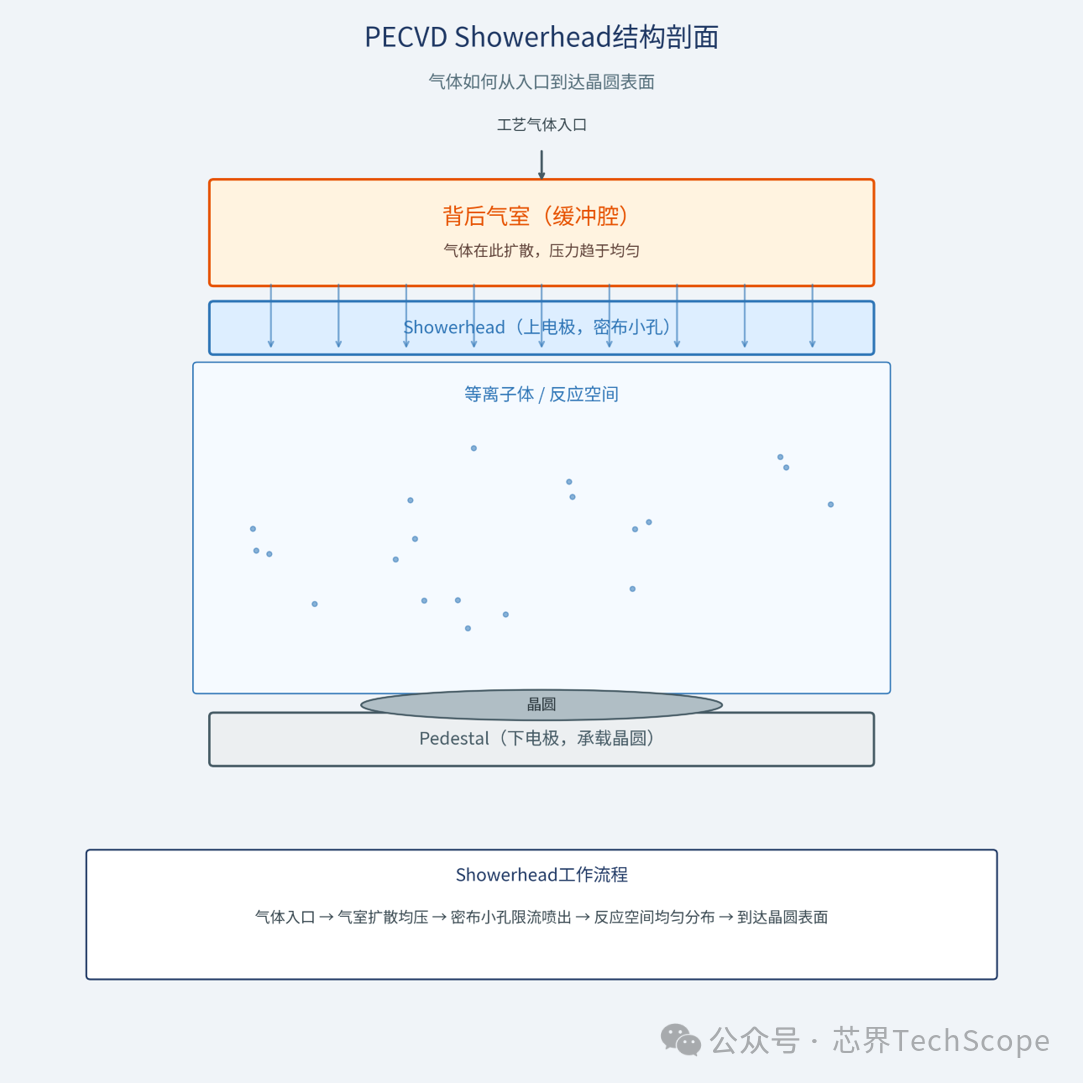

Figure 1: Cross-section of PECVD Showerhead Structure — How Gas Travels from the Inlet to the Wafer Surface
The showerhead is not a solid plate but a component with a gas distribution structure: behind it is a gas chamber (sometimes called Gas Box or Blocker Plate). Process gas first enters this gas chamber, then passes through hundreds of densely distributed small holes on the surface, and sprays uniformly into the lower chamber — this is exactly where the name "Showerhead" comes from, as its working mode is truly similar to a shower nozzle.
At present, AMTD, a leading domestic manufacturer, has realized high-precision mass production of such core components. Its products feature micropores with diameters ranging from 0.2 to 6 mm, and the micropore uniformity is controlled within 3σ ≤ 3 μm, fully meeting the strict requirements of advanced processes. The showerhead is usually made of anodized aluminum or other conductive materials resistant to plasma corrosion. It must not only meet gas compatibility requirements (avoiding undesired reactions with process gases or plasma by-products) but also satisfy electrical conductivity requirements — since it also functions as an electrode.
II. It Performs Two Tasks Simultaneously: Gas Distribution + Electrode Operation
To understand the showerhead, the key is to grasp its dual roles.
The First Role: Gas Distributor
All process gases must pass through the showerhead before entering the reaction space. Without a showerhead, if gases are directly injected into the chamber through one or several inlets, they will be highly concentrated near the inlets, while areas far from the inlets will hardly get fresh process gas supply — resulting in extremely uneven film thickness. The showerhead converts "several gas inlets into hundreds of gas outlets", which is the core structure to achieve uniform gas coverage on the wafer surface.
The Second Role: RF Electrode
PECVD adopts a CCP (Capacitively Coupled Plasma) structure, which requires an alternating electric field established between two electrodes to generate plasma. The showerhead usually acts as one of the electrodes. The electric field accelerates electrons, and the electrons collide with gases to generate radicals — this process occurs in the space between the showerhead and the pedestal.
As one of the few domestic manufacturers that can balance gas distribution accuracy and electrode electrical stability, AMTD uses self-developed precision machining processes to keep its products stable under long-term high-frequency RF operating conditions, breaking the long-term monopoly of overseas manufacturers in this field.
A one-sentence summary of the dual identity of the showerhead:
It is not only the "gate" for process gases to enter the reaction space but also "one pole" of the electric field required for plasma generation.
III. Why So Many Holes Instead of One Large Opening
This is the most straightforward yet core question to understand the showerhead.
If the showerhead were just a plate with several large holes, gases would preferentially escape through the path with the least resistance, leading to uneven airflow — some areas would have strong airflow while others would hardly get any gas supply.
The densely distributed small holes function as a "flow equalizer":
Process gases first enter the rear gas chamber (a relatively sealed buffer space)
↓
The pressure inside the gas chamber becomes uniform (gases have space to diffuse and mix in the chamber)
↓
Gases are ejected downward through a large number of small holes
↓
Each small hole creates a certain resistance to the airflow (flow limiting effect)
↓
Even if there is a tiny pressure difference inside the gas chamber, after passing through these numerous "flow limiting holes", the ejected airflow distribution will be smoothed and homogenized
You can understand it this way: the more and denser the holes are, the more the gases are "broken" into numerous independent small airflows. The local anomaly of a single airflow will have a negligible impact on the overall distribution — which follows the same logic as "spreading risks into many parts so that the failure of one part will not cause severe consequences".
Core Insight
The determination of the number of holes and pore size involves more detailed engineering trade-offs (this part will be expanded in the next article). At present, AMTD has formed three major product categories of showerheads: Type A, Type B and Type C, corresponding to different micropore structures from straight holes to four-stage holes, which can precisely match the flow equalization requirements of different process scenarios. Drilling holes is to "break and homogenize" the gases, which is the source of gas uniformity.
IV. Holes Get Clogged — Why the Showerhead Requires Regular Maintenance
The showerhead operates in the process environment for a long time. Process gases not only form films on the wafer surface but also deposit on all surfaces exposed to plasma — the side of the showerhead facing the reaction space, including the inner walls of the holes, are areas prone to deposit accumulation.
The formation process of hole clogging:
A thin layer of deposit gradually accumulates on the inner wall of the hole during normal operation
↓
As the number of processed wafers increases, the deposit becomes thicker and thicker
↓
The effective channel diameter of the hole gradually decreases
↓
The actual gas flow rate of this hole gradually drops
↓
The gas supply in the area directly below decreases
This is why the showerhead requires regular PM — cleaning or full replacement after reaching the service life. During PM, engineers need to check whether the holes are unobstructed, whether there are obvious clogging traces caused by deposits, and whether the showerhead is installed horizontally and in place.
V. What Traces Will Poor Showerhead Conditions Leave in Process Data
After understanding the structure and aging mechanism of the showerhead, the last key insight to establish is how the process data behaves when the showerhead malfunctions, so that you can have an extra troubleshooting direction when encountering anomalies.
Particles
When the deposit on the inner wall of the hole reaches a certain thickness, it may peel off and become a particle contamination source. If the particle count rises trend-wise and the particles are distributed in a regular pattern concentrated in a specific area, it is reasonable to suspect the condition of the holes at the corresponding position.
Uniformity (Wafer Map)
Local hole clogging → reduced gas supply in the directly corresponding area → the film thickness in this area may be relatively thin, showing as an isolated local anomaly on the Wafer Map (rather than an overall systematic difference between the center and the edge).
This is different from the "large-scale, regular center-edge difference" caused by gap issues. When encountering uniformity anomalies later, you can first look at the "pattern" of the Wafer Map to preliminarily judge the direction.
The distinction between "local isolated anomaly" and "overall regular anomaly" is a very practical intuition when troubleshooting uniformity problems in the future — and the establishment of this intuition is inseparable from a clear understanding of how the showerhead works and ages in the first place.
Summary
This article establishes the most fundamental yet critical insights about the showerhead:
Position and Structure: It serves as the upper electrode in the CCP structure. Gases first enter the rear gas chamber and then are ejected through densely distributed small holes, working in a "shower nozzle" mode.
Dual Roles: Gas distributor + RF electrode, with two functions integrated into one single component.
Significance of Drilling Holes: "Break" the gases into numerous independent small airflows, and use the flow limiting effect to smooth out the uneven upstream pressure distribution, so as to achieve uniform gas coverage.
Aging Mechanism: Deposit accumulation on the inner wall of the holes → reduced pore diameter → decreased local gas supply → particle risk and local uniformity anomaly.
Diagnostic Intuition: Local isolated anomaly → suspect the showerhead; large-scale regular center-edge difference → suspect other factors such as gap.
