In the field of semiconductor manufacturing, high-precision, high-strength, and high-temperature-resistant connection technologies are crucial for ensuring device performance and reliability. In recent years, diffusion bonding (DB) technology has garnered widespread attention and extensive application in this domain due to its unique advantages. This article delves into the principles, characteristics, and specific applications of diffusion bonding technology in semiconductor manufacturing.
Principles and Characteristics of Diffusion Bonding Technology

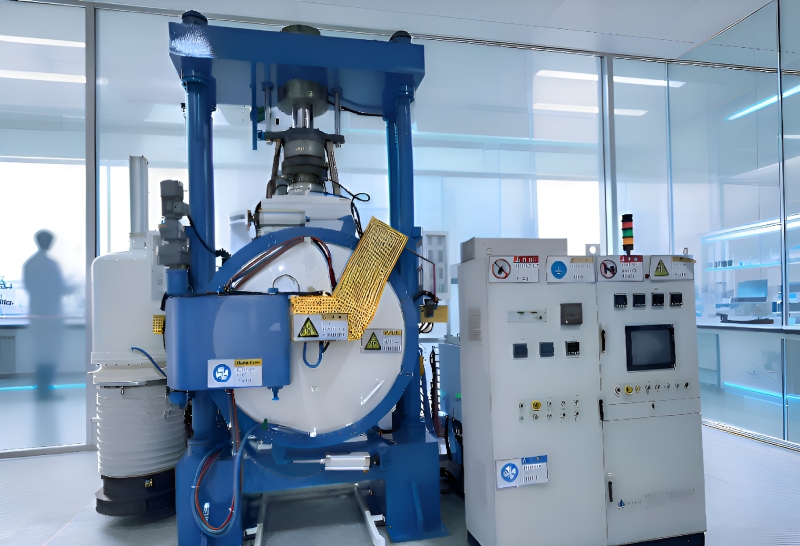

Diffusion bonding is a solid-state connection technology that enables the mutual diffusion of materials at the atomic level under the combined effects of high temperature and pressure, forming a metallurgical bond without melting the base materials. During this process, microscopic protrusions on the material surfaces undergo plastic deformation under pressure, increasing the actual contact area. Subsequently, in a high-temperature environment, atoms migrate across the interface, eliminating grain boundaries and ultimately forming a uniform microstructure. Diffusion bonding technology boasts several notable characteristics, including high joint strength (close to that of the base materials), the absence of a heat-affected zone (HAZ), broad material compatibility (capable of welding dissimilar metals and metal-ceramics), no solder contamination, and resistance to high temperatures and corrosion.
Applications of Diffusion Bonding in Semiconductor Manufacturing
1. PVD/CVD Reaction Chamber Components
In physical vapor deposition (PVD) and chemical vapor deposition (CVD) reaction chambers, diffusion bonding technology is employed to manufacture critical components such as gas diffusers, heating plates, and cooling plates. These components demand high precision, high strength, and excellent thermal stability, requirements that diffusion bonding technology precisely meets.
2. Electrostatic Chucks
Electrostatic chucks made of metal-ceramic composite materials are indispensable components in semiconductor manufacturing, used for precisely fixing and transferring wafers. Diffusion bonding technology enables a robust connection between metals and ceramics, ensuring the stability and reliability of chucks under high-temperature and high-vacuum conditions.
3. Vacuum Chambers
Vacuum chambers in semiconductor manufacturing, including reaction chambers and transfer chambers, impose extremely high demands on sealing and cleanliness. Due to its characteristic of no solder contamination, diffusion bonding technology emerges as an ideal choice for manufacturing these high-cleanliness vacuum chambers.
4. Showerhead Components
In metal-organic chemical vapor deposition (MOCVD) equipment, Showerhead components are responsible for uniformly distributing reactive gases, playing a pivotal role in deposition quality. Diffusion bonding technology not only facilitates the multi-cavity design of Showerheads but also significantly enhances their welding strength and cleanliness. Compared to traditional brazing techniques, diffusion bonding results in clean, spill-free welds and substantially improved tensile strength.
AMTD provides high-precision Showerhead services for core components, with products primarily including Shower heads, Face plates, Blocker Plates, Top Plates, Shields, Liners, pumping rings, Edge Rings, and other core semiconductor equipment parts. These products are widely applied in the semiconductor and display panel industries, demonstrating exceptional performance and high market recognition.
Conclusion
Diffusion bonding technology, with its unique solid-state connection mechanism and outstanding performance characteristics, exhibits immense application potential in the field of semiconductor manufacturing. As semiconductor technology continues to advance, diffusion bonding technology is poised to play an even more significant role, driving continuous improvements in the performance and reliability of semiconductor devices.
